Reports can filter or summarized by Material / Date/ Party & ticket number wise etc., Memory capacity two Lakh ticket (5 Lakh tickets can Extendable).

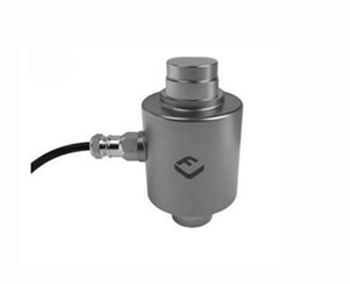

• Hermetically welded and sealed
• Built with surge arrester for lightning 4000 divistions OIML R60 Class C Optimized multi cell adjustment system

• Digital Technology
• Auto connecting facility with High Accuracy Protect from water. Dust & Moisture with IP68 Output digital Signal RS - 485

• Corner correction not Required
• No Calibration required.
• Better accuracy.
• Long Distance signal communication between Weigh bridge room and structure (up to 200mtrs.)
• A/D Module resolution – Rs.200000.
• Safe overload 150% FS.
• Rated Output 30000 DIV.
• Creep Error 0.02 % FS

• Combined error 0.02%FS
• Zero balance 0.1%FS
• Temperature range -30*c +70*C
• Zero balance 0.1%FS
• Protection class IP68
• Resolution: 5 and 10
• Load cell Excitation: 750 Ohm load cells at 8v DC, 12DC and 15DC
• Load current: will be capable of driving 8v-750 ohms
